SimpleProduct Description

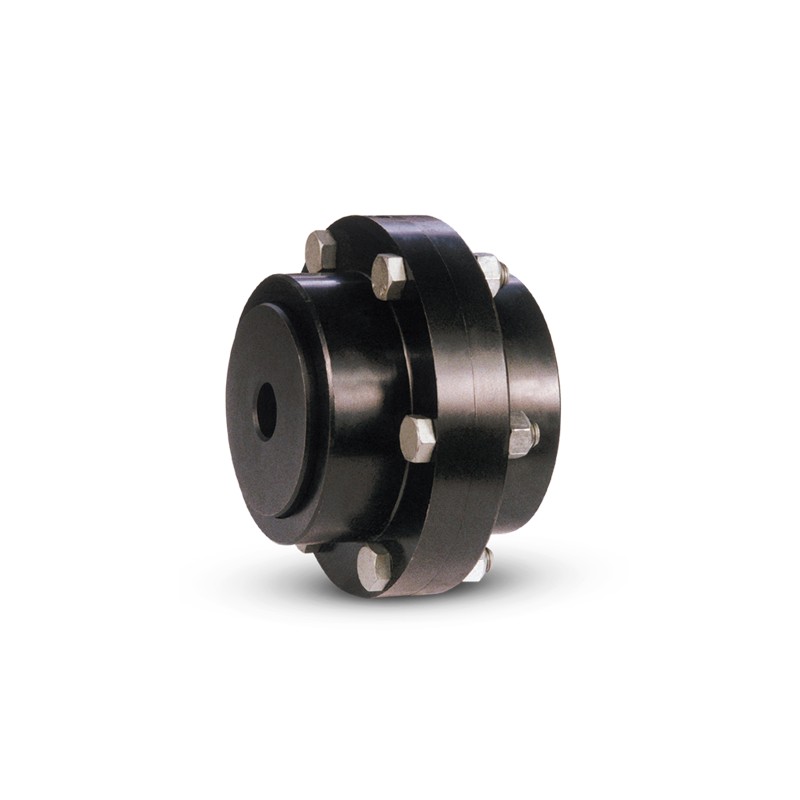

Elign Gear Coupling consists of hubs with multi crowned teeth at flank, tip and teeth. It is a simple, compact and light unit for transmitting the same power when compared to the couplings of similar capacity available in the market.
| Type | Size | Torque Rating | Kw/rpm |
| ED – With double housing | ED 130 to ED 110000 | 1300 to 1100000 N.m. | 0.136 to 115.19 kW per RPM |
| ER – With one end rigid | ER 130 to ER 45000 | 1300 to 450000 N.m | 0.136 to 47.123 kW as per RPM |
| ET – With spacer | ET 130 to ET 110000 | 1300 to 1100000 N.m. | 0.136 to 115.19 kW per RPM |
| EV – For vertical application | EV 130 to EV 17400 | 1300 to 174000 N.m. | 0.136 to 18.221 kW per RPM |
| ES – With single housing | ES 1600 to ES 17400 | 16000 to 174000 N.m. | 1.675 to 18.221 kW per RPM |
